Commonly used in the dairy, beverage and brewing industry, this gasket can be found in sections of pipework that are regularly disassembled for cleaning.

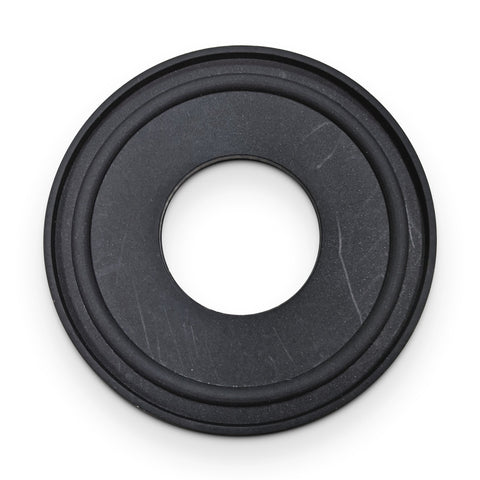

Gaskets manufactured from EPDM are highly resistant to hot water and steam. Ethylene propylene rubber has a temperature range of -50°C to +120°/150°C (-60°F to +250°/300°F)

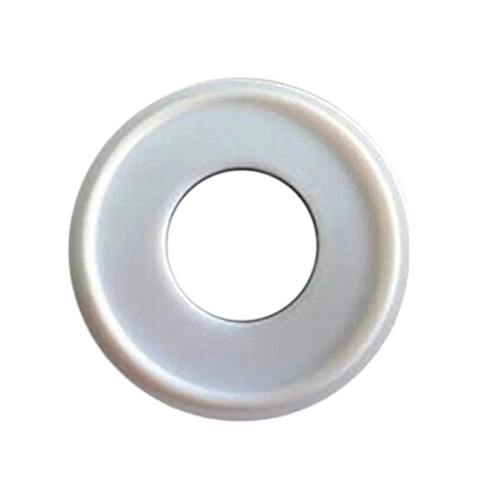

Gaskets manufactured from PTFE are made of synthetic fluoropolymer of tetrafluoroethylene consisting completely of carbon and fluorine. It is innately hydrophobic (repelling water and water-containing substances) and has one of the lowest coefficients of friction against any solid.

PTFE has excellent dielectric properties and provides excellent thermal insulation with an operating temperature range of -200°C to 260°C. (-328°F to +500°F) PTFE is the most chemically resistant plastic known and is unaffected by most corrosive liquids, vapours, and gases

PTFE gasket products provide outstanding chemical resistance for duties where hygiene and non-contamination are essential.

Specifications

• Type: Tri Clamp
• Material: EPDM (Ethylene propylene) / PTFE (Teflon)
• 0.5/0.75" suitable for 25mm ferrule face
• 1/1.5" suitable for 50.4mm ferrule face
• 2" suitable for 63.9mm ferrule face
• 2.5" suitable for 77.4 ferrule face
• 3" suitable for 91mm ferrule face

Most gaskets are available in a variety of materials e.g. Viton (FKM), Silicone or PTFE. Please inquire via email for a quote.

We supply a wide variety of stainless steel fittings, including Tri Clamp (tri-clover), RJT, DIN, and BSP adaptors.

Connectors, hosetails, tees, bends, crosses, reducers, valves, adaptors, strainers, sightglasses, blanks, clamps, gaskets, and pipework items can be fabricated to order.

All at competitive prices - please ask for a quote CONTACT US

Only a limited selection is available to buy online: if you don't find what you need, please CONTACT US to order

Clamps HERE

Usually available on a next-day delivery service
